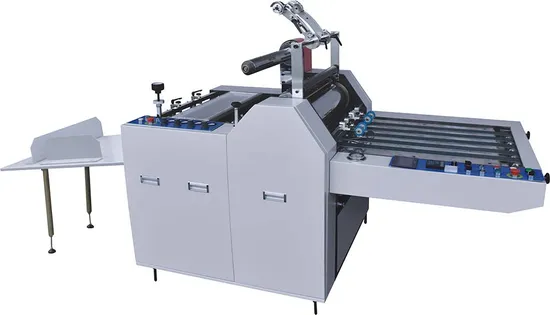

Automatic Thermal Laminating Machine Sheet Paper Lamination Machine

Overview

Basic Info.

Model NO.	YZFM-800SA
Plastic Film Mulching Modes	Hot Laminating
Performance	Waterproof
Paper Thickness	105-500g/Sq.M
Total Power	25kw
Production Speed	40-80m/Min
Min.Sheet Size	250*250mm
Max. Sheet Size	800*1040mm
Transport Package	Wooden Case+Pallet
Specification	7200*1800*1900mm
Trademark	Huawei
Origin	Ruian Zhejiang
Production Capacity	1000set/Year

Product Description

Product Description

Brief introduction:
YZFM-800SA, Automatic thermal film Laminating Machine is controlled by Delta PLC. One person operates easily. This Highly automated equipment can shorten the time of procedure and enhance efficiency. The diameter of main heating pressing steel roller is 370mm. and this steel roller is heated by heat transfer oil, circularly heated by the mold temperature machine.
This laminating machine is equipped with film separating and punching devices. With sheet drawing control installed (Pull gauge).Machine features:
•High speed feeder
China's best brand Feeder, with double sheets detector
•Laminating unit
The diameter of main pressing steel roller is 370mm. This machine is equipped with film separating and punching devices. Paper overlap adopts servo technology, precision is high.
•sheets Separating unit
The laminated products passed the punching devices were separated easily. There are pressing roller and pulling roller to separate sheets.
Separating unit adopts pneumatic device, it is automatic, operated easily

Product Parameters

Model	YZFM-800SA
Max. Sheet Size	Width 800 × Length 1040 mm
Min. Sheet Size	250×250mm
Suitable Paper Thickness	105-500 g/m2
Suitable Film Supply	BOPP Thermal Film only
Max. Production Speed	70 m/min
Laminating Temperature	Approx. 85-125ºC
Total Power	18.07kW
Overall Dimensions	6900×2400×1900mm
Total Weight	2800kg
